Residential communities, commercial centers, industrial and mining enterprises, airports, stations, schools and other venues.
l Capacity: 30 kVA ~ 2,500 kVA
l Rated primary voltage: 6 kV ~ 35 kV
l Rated secondary voltage: 0.4 kV
l Tap positions: 5
l Frequency: 50/60 Hz
l Phase: Three-phase
l Vector Group: Dyn11, Yyn0, etc.
l Impedance Voltage: 4% ~ 6%

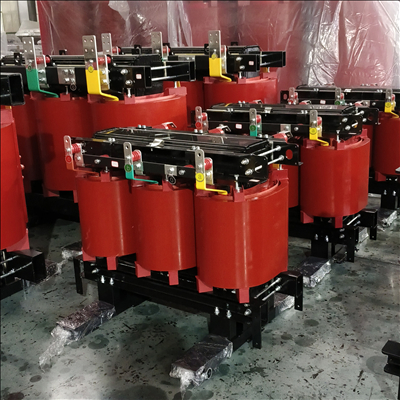

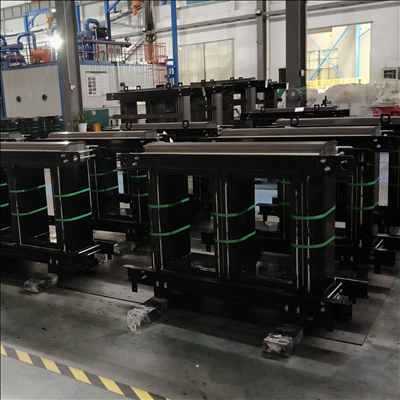

The amorphous alloy dry-type transformer boasts superior performance with outstanding safety, reliability and environmental friendliness. It can be installed close to load centers to meet the development demands of modern metropolises with high-density loads. This transformer achieves a dramatic reduction in both no-load loss and load loss. It is widely applied in high-rise buildings, commercial centers, subways, airports, stations, industrial and mining plants as well as power plants, and is especially suitable for installation in locations with high fire protection requirements such as flammable and explosive areas.
| 10 kV Amorphous Alloy Epoxy Resin Cast Dry-Type Power Transformer | |||||||||||||
| Rated Capacity (kVA) | Level 1 | Level 2 | Level 3 | Short Circuit Impedance (%) | |||||||||
| No-load Loss (W) | Load Loss (W) | No-load Loss (W) | Load Loss (W) | No-load Loss (W) | Load Loss (W) | ||||||||
| B(100℃) | F(120℃) | H(145℃) | B(100℃) | F(120℃) | H(145℃) | B(100℃) | F(120℃) | H(145℃) | |||||
| 30 | 50 | 605 | 640 | 685 | 60 | 605 | 640 | 685 | 70 | 670 | 710 | 760 | 4 |
| 50 | 60 | 845 | 900 | 965 | 75 | 845 | 900 | 965 | 90 | 940 | 1000 | 1070 | |
| 80 | 85 | 1160 | 1240 | 1330 | 100 | 1160 | 1240 | 1330 | 120 | 1290 | 1380 | 1480 | |
| 100 | 90 | 1330 | 1415 | 1520 | 110 | 1330 | 1415 | 1520 | 130 | 1480 | 1570 | 1690 | |
| 125 | 105 | 1565 | 1665 | 1780 | 130 | 1565 | 1665 | 1780 | 150 | 1740 | 1850 | 1980 | |
| 160 | 120 | 1800 | 1915 | 2050 | 145 | 1800 | 1915 | 2050 | 170 | 2000 | 2130 | 2280 | |
| 200 | 140 | 2135 | 2275 | 2440 | 170 | 2135 | 2275 | 2440 | 200 | 2370 | 2530 | 2710 | |
| 250 | 160 | 2330 | 2485 | 2665 | 195 | 2330 | 2485 | 2665 | 230 | 2590 | 2760 | 2960 | |
| 315 | 195 | 2945 | 3125 | 3355 | 235 | 2945 | 3125 | 3355 | 280 | 3270 | 3470 | 3730 | |
| 400 | 215 | 3375 | 3590 | 3850 | 265 | 3375 | 3590 | 3850 | 310 | 3750 | 3990 | 4280 | |
| 500 | 250 | 4130 | 4390 | 4705 | 305 | 4130 | 4390 | 4705 | 360 | 4590 | 4880 | 5230 | |
| 630 | 295 | 4975 | 5290 | 5660 | 360 | 4975 | 5290 | 5660 | 420 | 5530 | 5880 | 6290 | |
| 630 | 290 | 5050 | 5365 | 5760 | 350 | 5050 | 5365 | 5760 | 410 | 5610 | 5960 | 6400 | 6 |
| 800 | 335 | 5895 | 6265 | 6715 | 410 | 5895 | 6265 | 5715 | 480 | 6550 | 6960 | 7490 | |
| 1000 | 385 | 6885 | 7315 | 7885 | 470 | 6885 | 7315 | 7885 | 550 | 7650 | 8130 | 8760 | |
| 1250 | 455 | 8190 | 8720 | 9335 | 550 | 8190 | 8720 | 9335 | 650 | 9100 | 9690 | 10370 | |
| 1600 | 530 | 9945 | 10555 | 11320 | 645 | 9945 | 10555 | 11320 | 760 | 11050 | 11730 | 12580 | |
| 2000 | 700 | 12240 | 13005 | 14005 | 850 | 12240 | 13005 | 14005 | 1000 | 13600 | 14450 | 15560 | |
| 2500 | 840 | 14535 | 15445 | 16605 | 1020 | 14535 | 15445 | 16605 | 1200 | 16150 | 17170 | 18450 | |
| NOTE: The data in the table is for reference only. The company reserves the right to make changes to the data and accept special orders. | |||||||||||||
