Our company has successfully developed 110kV three-phase epoxy resin cast insulated dry-type power transformers and led the formulation of relevant standards, demonstrating robust technological innovation capacity.
Our company has successfully developed 110kV three-phase epoxy resin cast insulated dry-type power transformers and led the formulation of relevant standards, demonstrating robust technological innovation capacity.

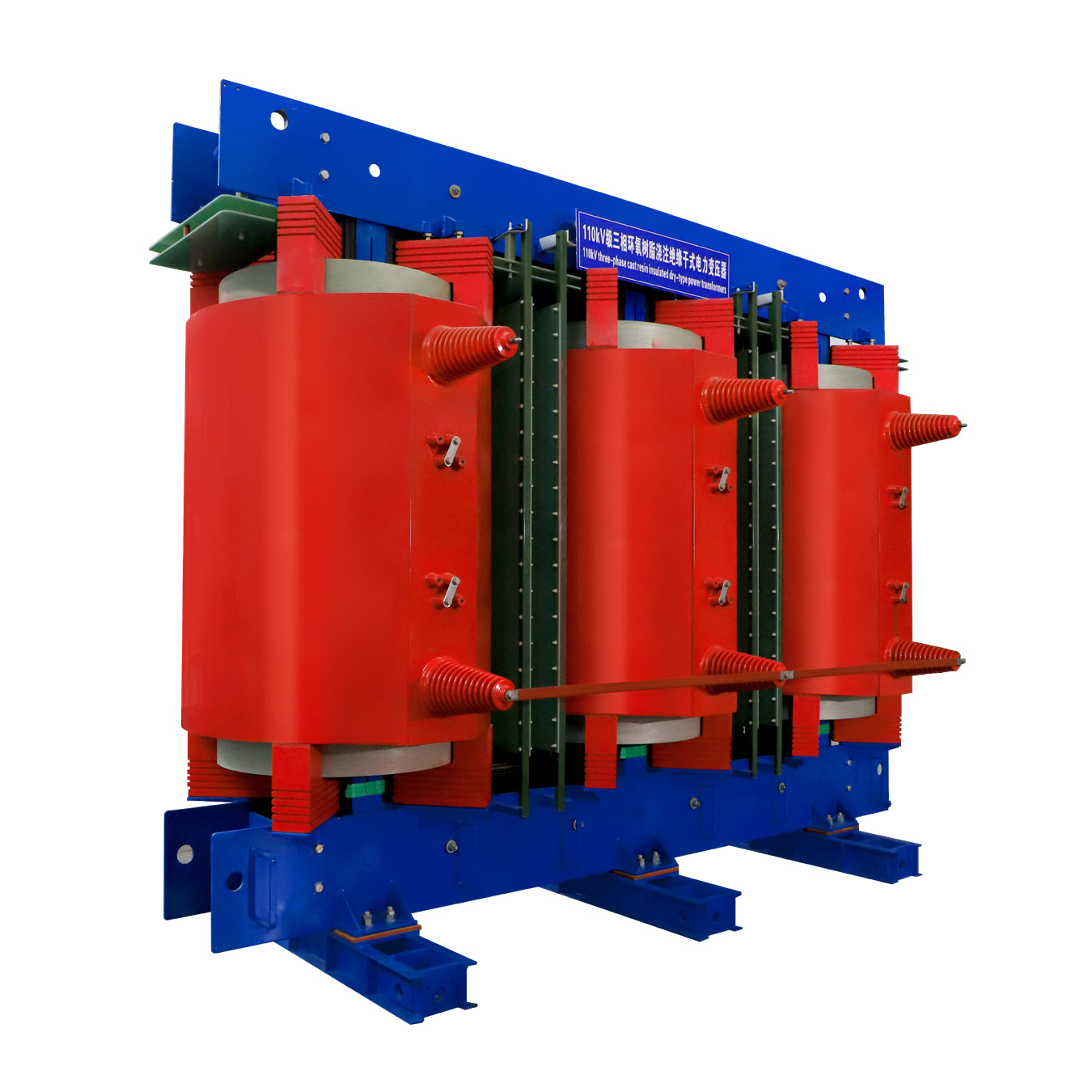

The 110kV three-phase dry-type power transformer is widely recognized by customers for excellent fire and disaster resistance, outstanding short-circuit withstand capability, high reliability, compact footprint and maintenance-free performance. It is mainly applied in downtown and underground substations, high-rise and large public buildings, rail transit systems, environmentally sensitive zones, explosion-proof and high-fire-risk locations, data centers, high-end industrial parks and other scenarios.
Model: SC12-10000/110
Rated Capacity: 10,000 kVA
Rated Voltage: 110±2×2.5% / 10.5 kV
Rated Current: 52.5 / 549.9 A
Vector Group: YNd11
Frequency: 50 Hz
Installation Type: Indoor
Cooling Mode: AN / AF
Insulation Class: Class H
No-load Loss (kW): 22
No-load Current (%): 0.5
Load Loss at 145°C (kW): 70
Impedance Voltage (%): 10.5
High Voltage Main Winding HV Um/LI/AC: 126 / 480 / 200
High Voltage Neutral End HVN Um/LI/AC: 52 / 250 / 95
Low Voltage LV Um/LI/AC: 12 / 75 / 35
