Widely applied in residential communities, commercial centers, industrial and mining enterprises, airports, stations, schools and other locations.
l Capacity: 30 kVA ~ 2,500 kVA
l Rated primary voltage: 6 kV ~ 35 kV
l Rated secondary voltage: 0.4 kV
l Tap positions: 5
l Frequency: 50/60 Hz
l Phase: Three-phase
l Vector Group: Dyn11, Yyn0, etc.
l Impedance Voltage: 4% ~ 6.5%

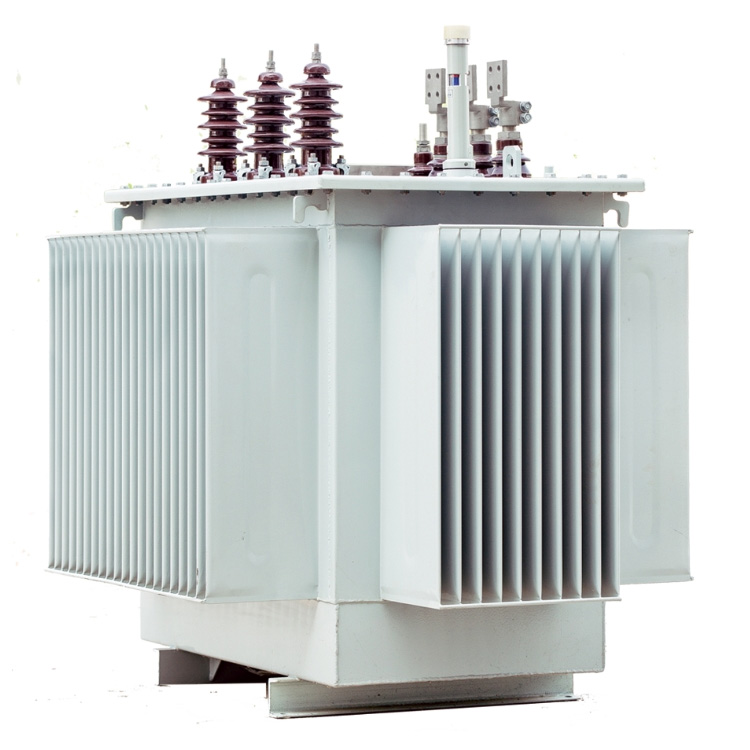

Oil-immersed laminated core distribution transformers feature compact structure, elegant appearance, small footprint, low temperature rise and noise, strong overload capacity, superior electrical and mechanical performance, as well as reliable operation.
Our energy-saving transformers are independently developed by integrating self-innovation and introduced technologies, together with the research and application of new materials and new processes. Optimized and innovative design of core and winding structures effectively reduces no-load loss and noise.
Developed with advanced domestic and foreign technologies and equipment, the transformer core is made of high-performance cold-rolled oriented silicon steel sheets and processed by fully automatic robotic core stacking machines. The sheets deliver tiny cutting burrs and high stacking factor, which efficiently cut down the transformer’s no-load loss, no-load current and noise level.
