Residential communities, commercial centers, industrial and mining enterprises, airports, stations, schools, rural areas and developing regions, etc.
l Capacity: 30 kVA ~ 2,500 kVA
l Rated primary voltage: 6 kV ~ 35 kV
l Rated secondary voltage: 0.4 kV
l Tap positions: 5
l Frequency: 50/60 Hz
l Phase: Three-phase
l Vector Group: Dyn11, Yyn0, etc.
l Impedance Voltage: 4% ~ 6.5%

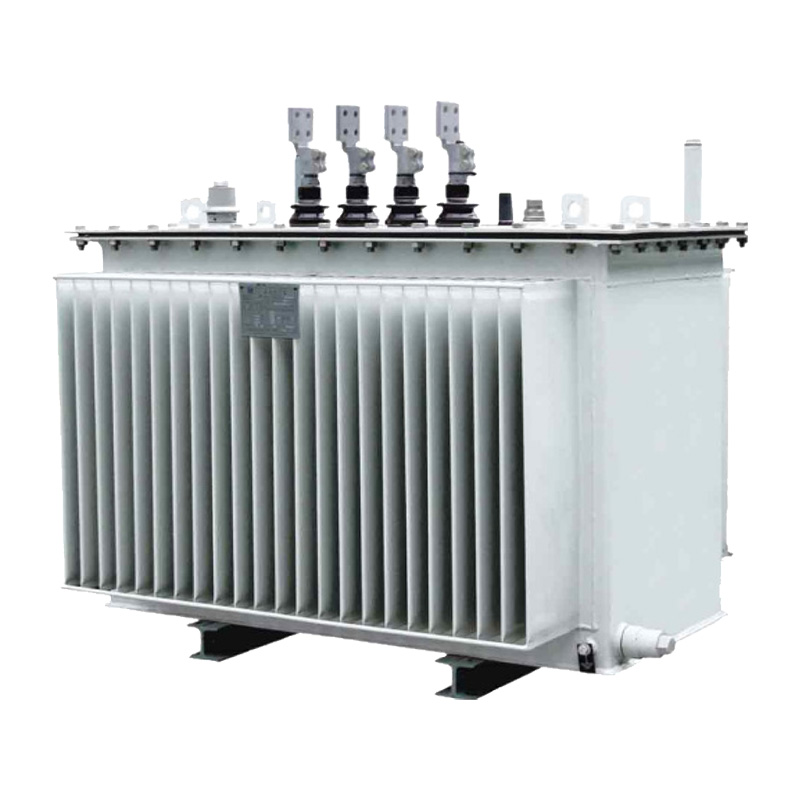

Amorphous alloy oil-immersed transformers are energy-saving oil-immersed distribution power equipment whose cores are made of amorphous alloy strips instead of conventional cold-rolled silicon steel sheets. Main voltage classes cover 10kV and 35kV, with capacities ranging from 30 kVA to 25,000 kVA. Mineral oil serves for insulation and heat dissipation.
The product’s core advantage is ultra-low no-load loss, making it especially suitable for customers with low load factors. It is widely adopted in distribution scenarios with long-term light load and round-the-clock operation, such as urban-rural power grid upgrading, photovoltaic, wind power and energy storage stations, industrial parks, commercial buildings and municipal infrastructure.
