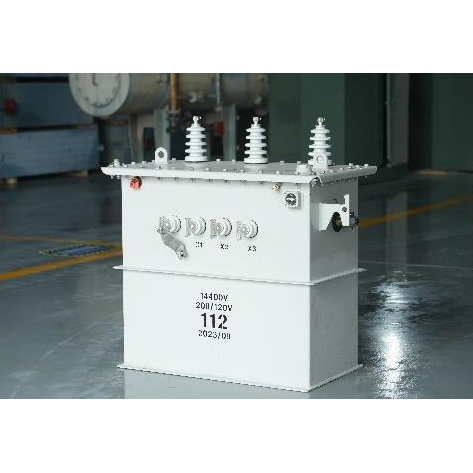

This series of three-phase pole-mounted oil-immersed transformers is specially designed for overseas three-phase distribution power grids.
This series of three-phase pole-mounted oil-immersed transformers is specially designed for overseas three-phase distribution power grids. Equipped with low-loss silicon steel core and lightning-proof oxygen-free copper windings, the corrugated tank realizes efficient heat dissipation and noise reduction simultaneously.
Its high voltage covers mainstream distribution voltages such as 13.2kV, 13.8kV and 24.94kV, while the standard low-voltage output is 240/480V three-phase voltage for industrial and civil use, with capacities ranging from 30kVA to 1,000kVA.
Featuring compact and lightweight overall structure, the transformer can be directly installed on utility poles and outdoor pole frames without supporting power distribution rooms. It applies to three-phase load scenarios including village industrial and commercial facilities, small processing plants, centralized power supply for communities, and small grid-connected photovoltaic power distribution.
The products comply with international standards including UL, ANSI/IEEE, CSA and IEC, and are available for mass export to power grid projects across American countries.
